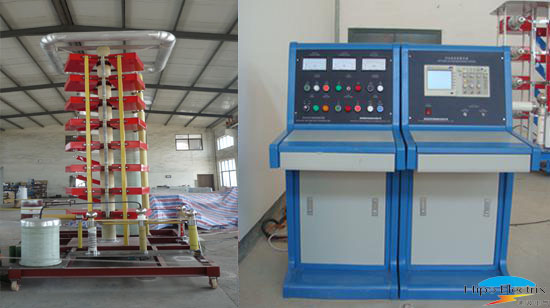

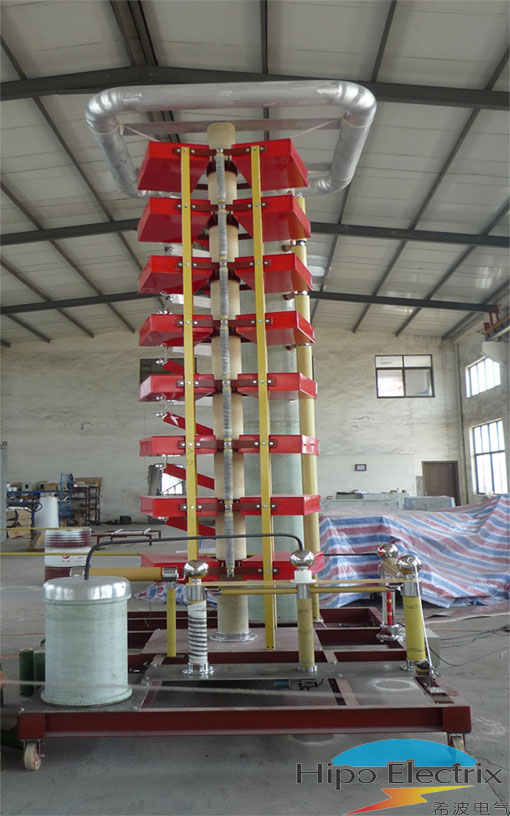

Hippo Electrical Technology Co., Ltd. as the design and manufacture of various high voltage test equipment of high-tech joint venture, has successfully completed several sets of large, medium and small impulse voltage generator test system, production, installation and commissioning tasks, IVG series impulse voltage generator can output standard lightning wave, standard manipulation, lightning chopper, steep wave impulse voltage waveform and other high-voltage test equipment. Verification by the authority, the technical indicators meet IEC6006-1-05, IEC60060-2-05 and GB/T16927. 1-2-2008 requirements. Equipment widely used in transformers, high-voltage cables, switches, sockets, insulators and other forms of high-voltage electrical products testing and routine testing.
1.Model meaning IVG-□
Two main technical parameters
|
额定电压(kV) |
冲击电容器(μF) |
级电容器(μF) |
冲击容量(kJ) |
级电压(kV) |
级数(n) |
高度(m) |
重量（kg） |
|
300 |
0.133～0.250 |
0.40～0.75 |
6.0～11.25 |
±100 |
3 |
1.5 |
600 |
|
600 |
0.066～0.125 |
0.40～0.75 |
12.0～22.50 |
±100 |
6 |
2.7 |
800 |
|
1200 |
0.033～0.062 |
0.40～0.75 |
24.0～45.0 |
±100 |
12 |
5.1 |
1200 |
|
1600 |
0.063～0.125 |
0.5～1.0 |
80.0～160.0 |
±200 |
8 |
7.0 |
6200 |
|
2000 |
0.051～0.105 |
0.5～1.0 |
100.0～200.0 |
±200 |
10 |
8.4 |
7200 |
|
2400 |
0.042～0.083 |
0.5～1.0 |
120.0～240.0 |
±200 |
12 |
9.7 |
8000 |
|
2800 |
0.036～0.071 |
0.5～1.0 |
140.0～280.0 |
±200 |
14 |
11.0 |
9000 |
|
3200 |
0.031～0.063 |
0.5～1.0 |
160.0～320.0 |
±200 |
16 |
12.4 |
16000 |
|
3600 |
0.028～0.056 |
0.5～1.0 |
180.0～360.0 |
±200 |
18 |
13.7 |
17000 |
|
4000 |
0.025～0.050 |
0.5～1.0 |
200.0～400.0 |
±200 |
20 |
15.0 |
17800 |
|
4200 |
0.024～0.048 |
0.5～1.0 |
210.0～420.0 |
±200 |
21 |
15.7 |
18200 |
|
4800 |
0.021～0.042 |
0.5～1.0 |
240.0～480.0 |
±200 |
24 |
17.6 |
19600 |
(2) Product Highlights
● high efficiency circuit, output and high efficiency;
● Resistance replacement convenient, safe, reliable, and easy to transform the system parameters, for a variety of test materials testing requirements;
● Control system of manual and automatic control, to be completed by the pre-set charging voltage, constant current charging, automatic voltage regulator, the impact of the number of settings and counting, automatic trigger, automatic grounding point gap from the automatic tracking fireball charging voltage and polarity automatically conversion functions;
● digital transient memory oscilloscope, you can configure the floppy drive and the computer interface, test waveforms automatic data acquisition, storage, analysis and display, and print the waveform data files.
